The WI 120 and WI 200 gates are perfect for all types of private and industrial business activity areas. These gates are installed around industrial buildings, airports, ports, guarded car parks, around schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots where the gate can slide along the fencing. The gates are also frequently used when the driveway is short or if a hill prevents the use of double-leaf gates.
Gates on wheels are a special sliding gate solution with a design that makes it possible to shorten the back part of the leaf, called the gate tail. With this solution, the amount of space required for the gate to slide is greatly reduced in comparison to cantilever gates.
The manually-operated and power-operated WI gates were awarded the CE mark, which confirms their compliance with the provisions of the PN-EN 13241-1 standard for industrial and residential gates.

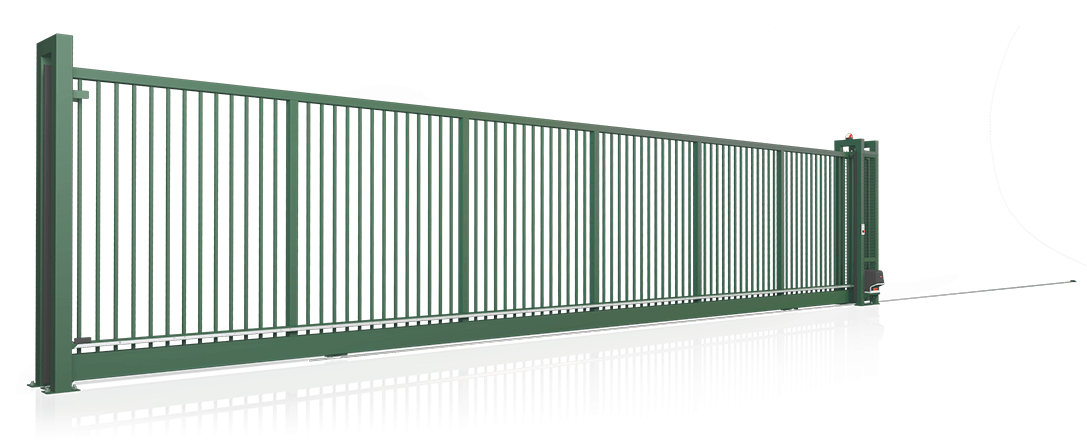

The WI 120 and the WI 200 gate with running wheels is a structure seated on steel wheels. The leaf moves along the running track fixed to the ground.
The WI gates are protected against corrosion by hot-dip galvanizing or by a combination of hot-dip galvanizing and coating with polyester paint. The Duplex product version is covered by our 5-year corrosion protection warranty.
The WI gates with running wheels are part of a system of access control components. Combined with industrial segments (OPO 201, OPO 251, OPZ252, OPZH253), mesh panels (Vega B, Vega B Light, Vega 2D Super, and Vega 2D), posts, and double-leaf gates and wickets (Bastion, Modest, Gardia), they form a complete fencing system.
The WI gate with wheels is a heavy-duty, safe structure. The gates feature a robust frame and bottom beam with the width adapted to the gate dimensions. The following bottom beams are used: for gate WI 120 = 120x80, and for gate WI 200 = 200x80 mm. Single, frame structural post; double post with widths over 10 m. Single, frame lock post.
The gates are available in a manually-operated and a power-operated version. The manually-operated version features a lock and a pull facilitating opening and closing of the gate. In the power-operated version, the automatic operating unit is installed on a robust steel rack located on the structural post of the gate
WIŚNIOWSKI fences are system solutions. We offer modern steel fences, section-infill fences and welded wire mesh fences for the home and for industry. Our fences provide durability and high quality combined with elegance and style. WIŚNIOWSKI complex solutions give you a peace of mind especially when you need to enclose your property and ensure it is safe and visually appealing. WIŚNIOWSKI fences are good choice both for private properties and industrial areas. Take advantage of the whole offer and create your unique fencing.
FENCE SYSTEM WITH THE WI SLIDING GATE on wheels
and a wicket, with a 25 x 25 mm box section infill
FENCE SYSTEM WITH THE WI SLIDING GATE on wheels
and a wicket, with the VEGA 2D Super mesh panel infill
Combining hot-dip galvanising with powder coating in DUPLEX system ensures the extended durability of WIŚNIOWSKI fencing. Despite the weather conditions, we have a lasting peace of mind that WIŚNIOWSKI fencing will be visually appealing.
The gates and wickets are available in hot-dip galvanised, or galvanised and polyester coated version. The standard colours are:
RAL 5010, RAL 6005, RAL 7016, RAL 7030, RAL 8017, RAL 9016, RAL 9005/MAT, hot-dip galvanized.
